Kanzaki’s latest gear shaving machine has been optimized to suit the needs of its users, delivering better machine rigidity and improved operability, in addition to being more compact.
New cutter head for crowning.

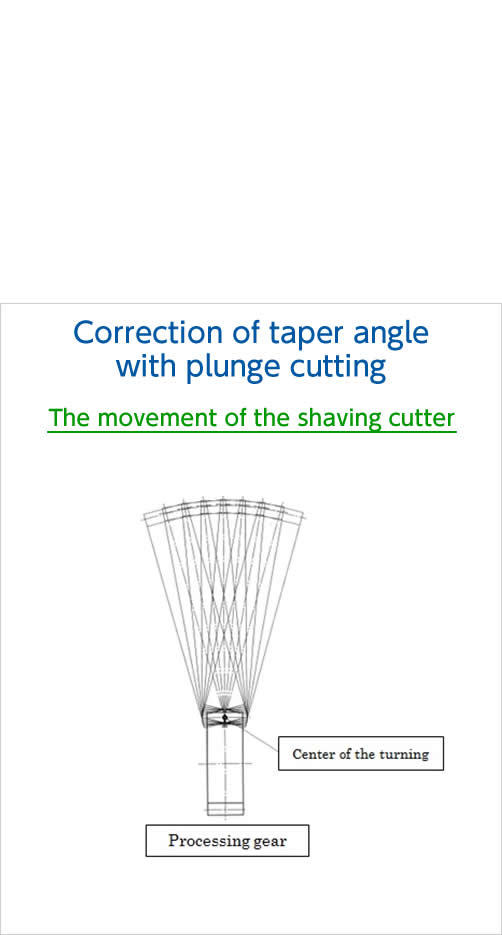

R-shaped slideway has been added to the cutter head to produce any design of crowned and tapered gears accurately.
Chip disposal measures considered
New design of the change-over and maintenance
The cutter head can be rotated 90 deg., reducing stress for the operator when changing cutters.
Specification
SX-350M-NC3
SX-350L-NC5
Max.Workpiece diameter(mm)
350
350
Max.Workpiece face width(mm)
40
150
Center distance between tail & head stocks(mm)
480
700
Table stroke(mm)
Non
±75
Max.Main spindle speed(min-1)
400
400
Motor main axis(kw)
3.7（5HP）
3.7（5HP）
Floor space(mm)
1,400×2,220×2,670
1,700×2,220×2,670
Weight(kg)
5,000
5,500
Connection to the deburring machine
Small Foot Print machine This arrangement realizes a compact line by situating the specially developed gantry loader inside the cover. Shorter production line configuration is possible even when the compact deburring unit is added.
