IHT Transaxle K46
Small IHT (Integrated Hydrostatic Transaxle) with minimal limitation for installation
- Features
-
- Speed control system can be selected between hand control and foot control
- Cooling fan is optionally installed above the input shaft
Specifications
| K46 | |
|---|---|
| Applications | Rear Engine Rider Lawn Tractor Lawn Mowe |
| Reduction Ratio | 28.04:1 21.53:1 |
| Axle Torque (rated)(N・m) | 231.4 with 28.04:1 177.7 with 21.53:1 |
| Max. tire size(inch) | 20 with 28.04:1 18 with 21.53:1 |
| Brake Capacity(N・m) | @ 350 N Brake Arm Force 330 with 28.04:1 253 with 21.53:1 |
| Pump/Motor Displacement(cc/min-1) | 7/10 |
| Max. Input Speed(min-1) | 3,000 |
| Axle Shaft Size(mm) | 19.05 |
| Max. Static Weight on Axle(kg) | 306 |
| Weight (Dry)(kg) | 12.5 |
| Brake | Wet disk, internal |
| Housing (Case) | Aluminum Die Casting |
| Differential | Automotive Type Bevel Gears |
| Differential lock | N/A |
| Speed Control System | Foot Control : Dampening System or External Shock Absorber Available Hand Control : External Friction Pack and Lever Available |
| Auxiliary hydraulic output | N/A |
| external filter change | N/A |
| Bypass Valve | Standard |
| Oil (L) | SAE 10W-30 Class CD 5W-50 (Option) 1.9 |

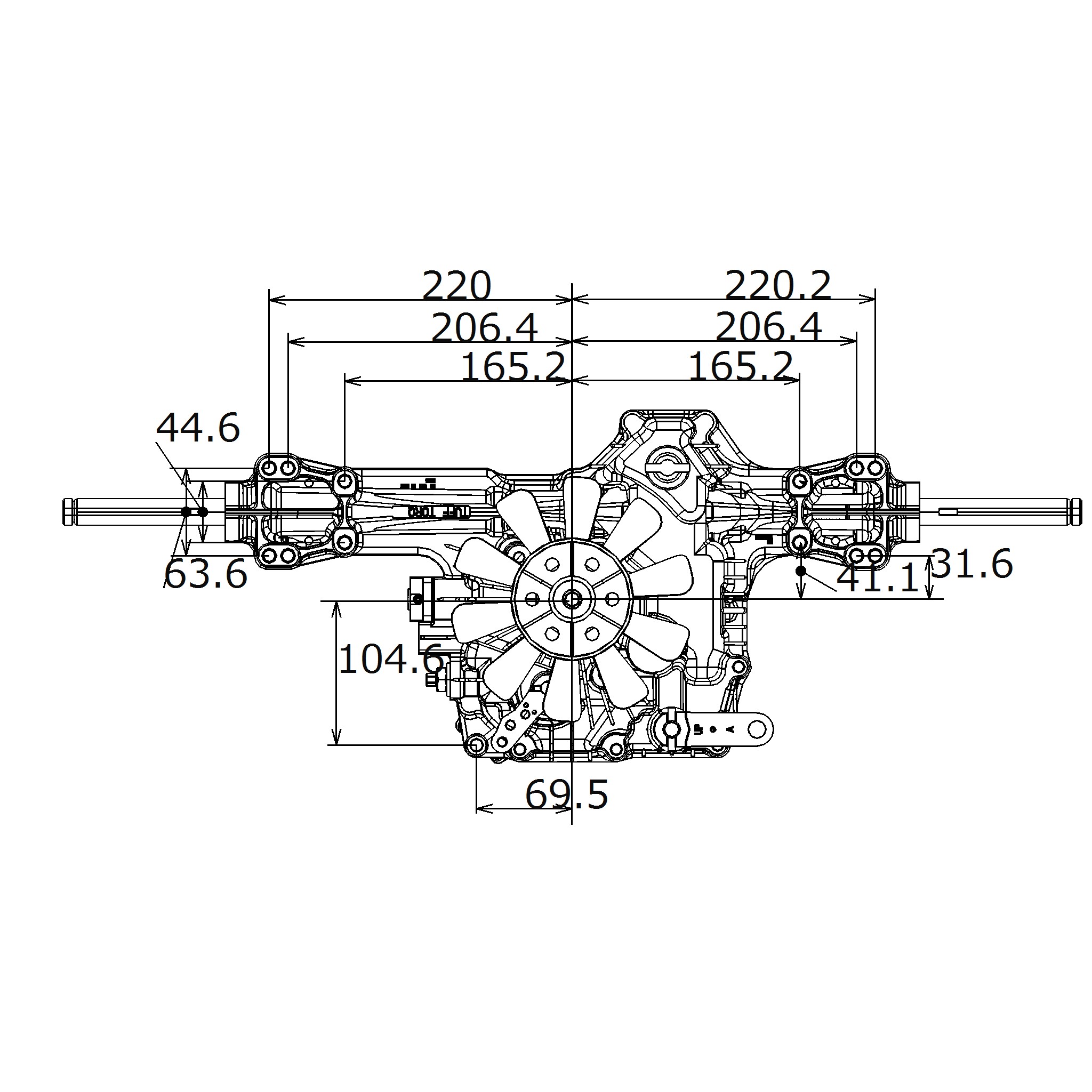

Drawing
