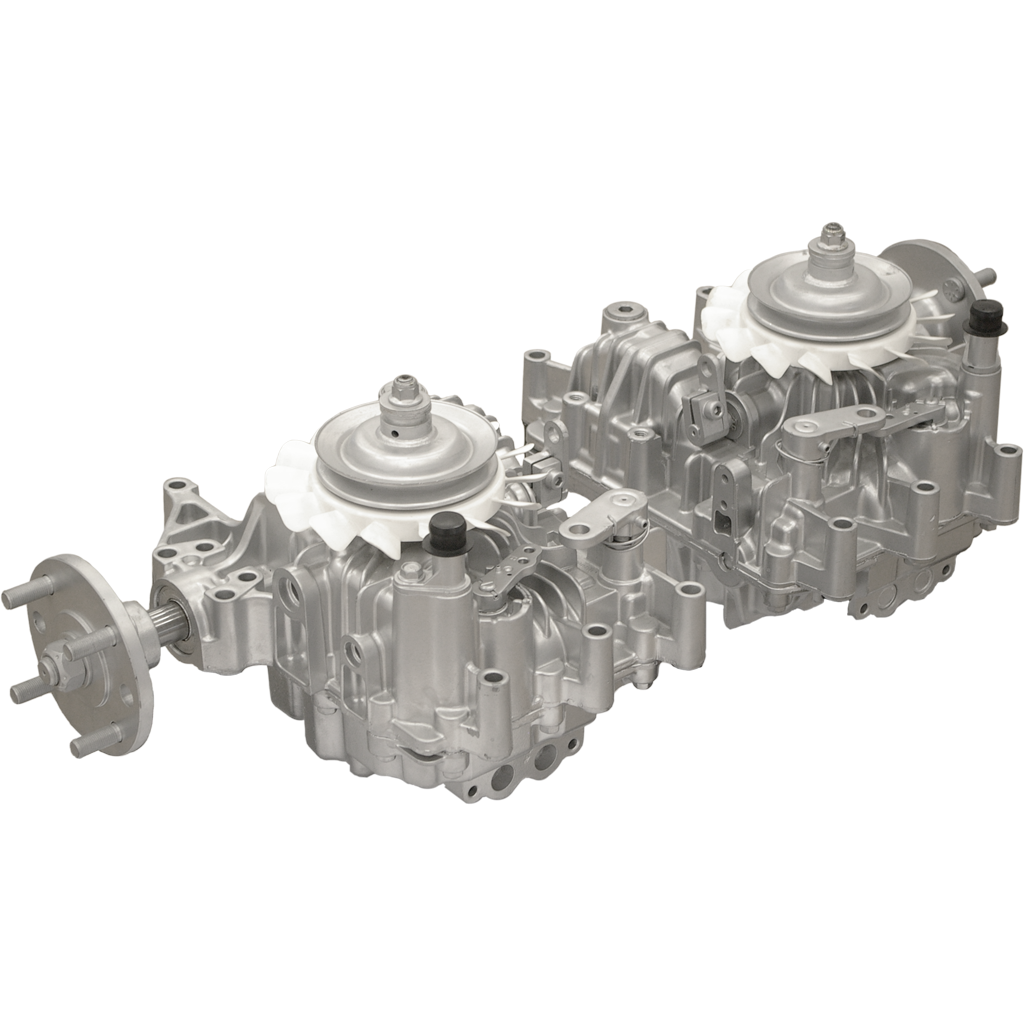

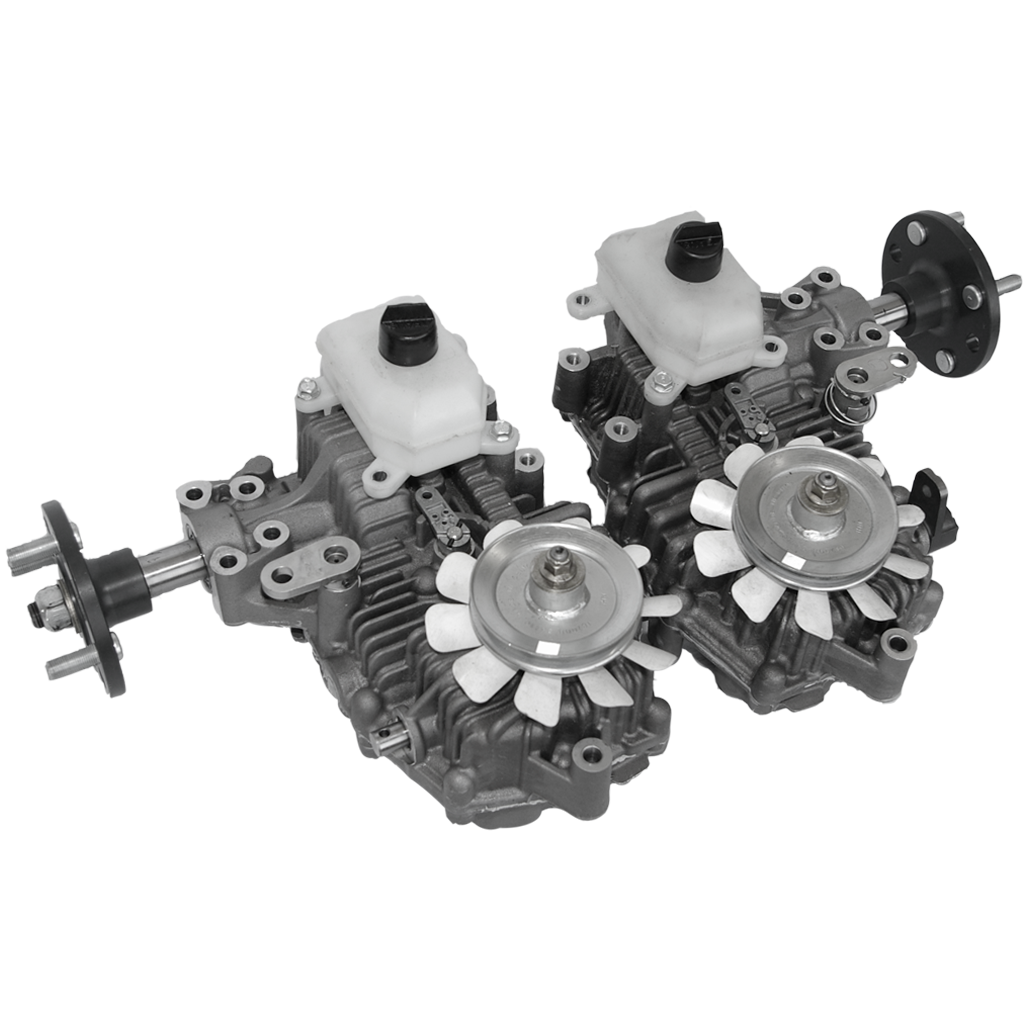

IHT Transaxle TZT and TZ Series
Compact IHT(Integrated Hydrostatic Transaxle) for Zero-turn radius mower
- Features
-
- Both the hydraulic transmission and the gear train in each housing
Specifications
 TZT7 |
 TZT1310 |
TZT13 |
 TZ-300 |
TZ-400 |
TZ-450 |
|
|---|---|---|---|---|---|---|
| Pump/Motor Displacement (cc/rev) | 7 | 10 | 13 | 10 | ||
| Rated Axle Output Torque (N・m) | 161 | 254 | 294 | 137 | 161 | |
| Max. Input Speed (min-1) | 3,100 | 3,400 | 3,420 | 3,000 | 3,350 | |
| Reduction Ratio | 20.00:1 | 20.48:1 | 16.65:1 | 18.00:1 | ||
| Axle Shaft Diameter (mm) | 25.4 | 30 | 25.4 | |||
| Recommended Tire Size (inch) | 16～22 | 23 | 24 | 18～20 | 20～22 | |
| Dry Weight (kg) | 15.0 | 22.5 | 14.4 | 14.5 | 14.9 | |
| Max. Static Weight on Axle (N) | 4,452 Each Axle 2,226 |
7,560 Each Axle 3,780 |
8,894 Each Axle 4,447 |
9,571 Each Axle 4,786 |
11,336 Each Axle 5,668 |
|
| Parking Brake System | Wet Disk, Internal | |||||
| Parking Brake Capacity (N・m) | 258 | 358 | 368 | 244 | ||
| Oil (L) | SAE 10W-30 Class CD 2.0 |
SAE 10W-30 Class CD 2.6 |
SAE 10W-30 Class CD 1.7 |
SAE 10W-30 Class CD 1.9 |
||
| Bypass Valve | Standard | |||||
| Aux. Hydraulic Output | N/A | Standard Option: 4.125(cc/rev) 6.9 (L/min) @3.1(MPa) * 2,000(min-1) |
N/A | |||
